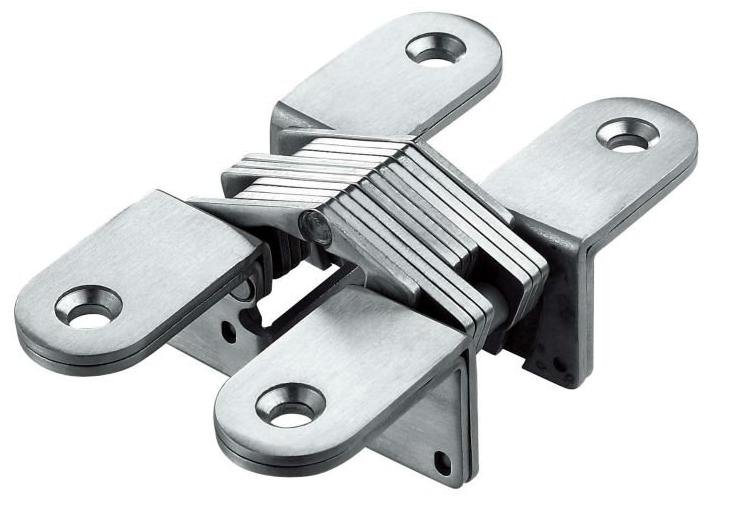

Concealed Hinge
Product Features
¡ñ Opening angle : Max 180°
¡ñ Material : Stainless Steel
¡ñ Fixing screw : All hinges are shipped with the proper size wood screws
¡ñ Opening angle : Max 180°
¡ñ Material : Stainless Steel
¡ñ Fixing screw : All hinges are shipped with the proper size wood screws
| Order Code | Door Thickness | Width (A) | Length (B) | Width (C) |
| 03.559.012.21 | 16 - 19 | 12.5 | 44 | 13 |
| 03.559.013.21 | 19 – 24 | 13 | 54 | 16 |
| 03.559.016.21 | 25 - 27 | 16 | 69 | 22.5 |
| 03.559.019.21 | 28 - 34 | 19 | 84 | 28.5 |
| 03.559.025.21 | 35 - 38 | 25 | 116 | 38.5 |
| 03.559.030.21 | 41 - 45 | 30 | 116 | 47.5 |
| 03.559.034.21 | 48 - 51 | 34 | 137 | 50.5 |
